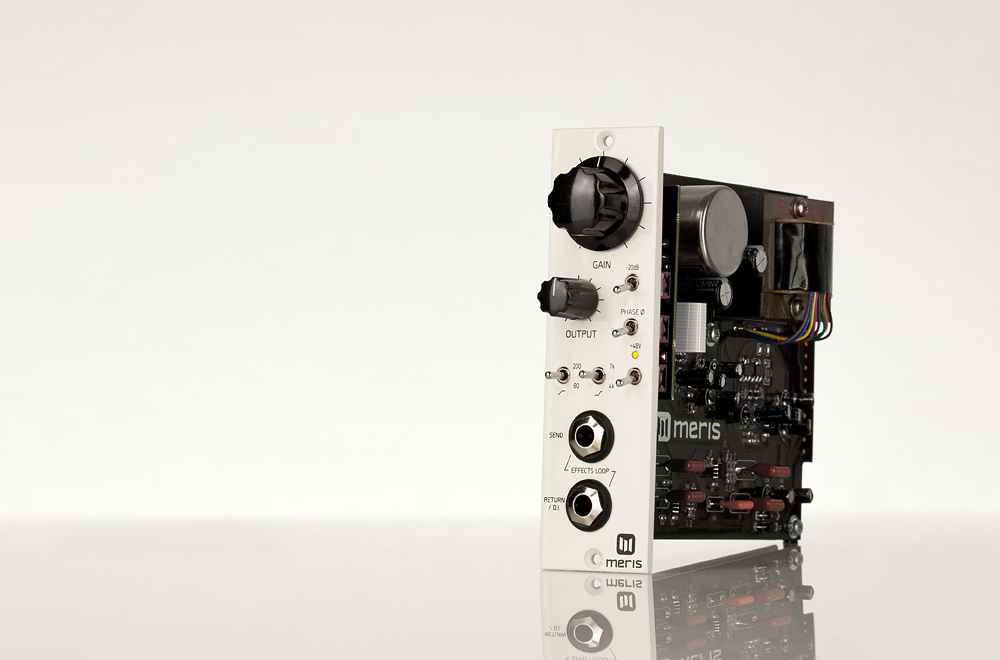

440 Mic Pre

A Guitar Recording Staple

Buy Now >

440 User Manual PDF

  • Up to 60dB of gain at the input section

  • Output trim -27dB to +12dB (occurs pre-output transformer to preserve output transformer secondary impedance)

  • 12dB / octave High-Pass: 80Hz or 200Hz corner frequency

  • High-Shelf boost: + 3dB at 4kHz or 7kHz corner frequency

  • 20Hz to 20kHz flat frequency response (+/- .3 dB) with all filters disengaged

  •  -130dBu EIN (A-weighted)

  • 1Meg Ohm input impedance at Return/D.I. input

Designed as the ultimate mic preamp for recording guitar. Install into your 500 series lunchbox and connect your post effects pedals to the loop. Your guitar & amp will love it.

  • Legendary Cinemag Input and Output transformers for classic American mic pre tone

  • Hybrid-Discrete opamps receiving and driving each respective transformer section

  • Pedal friendly post effects loop. Interface with pedals at levels that won’t clip

  • High Pass Filter selectable between 80Hz and 200Hz

  • Custom 7kHz or 4kHz High Shelf filter optimized for achieving a finished tone when recording guitar

  • 20dB Pad, Phase Reverse and Phantom Power toggles

  • Premium components throughout the all Analog signal path

  • Designed and Built in Los Angeles, California U.S.A.

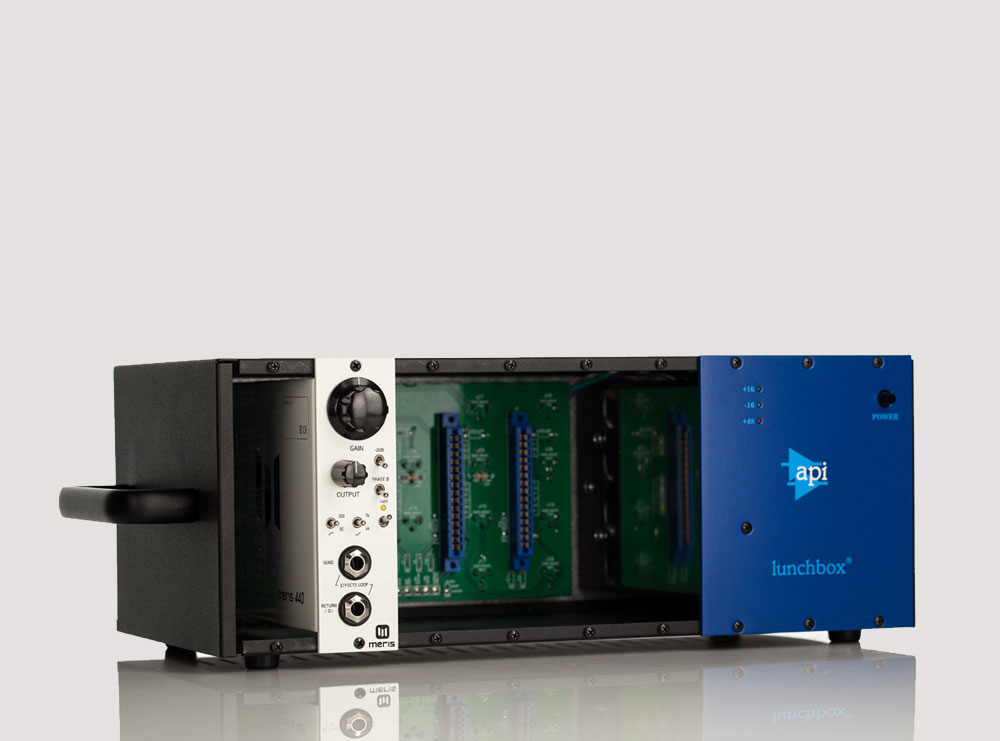

Step up to 500 Series

Get big studio console sound on your tracks

Install a 440 mic pre into any 500 series compatible chassis. Have legendary tone.
