Modular Reverb System with pro audio & studio rack heritage, advanced processing, and high performance signal path.

  • US $599.00

  • 0
Infinite Voyage

Discovery System

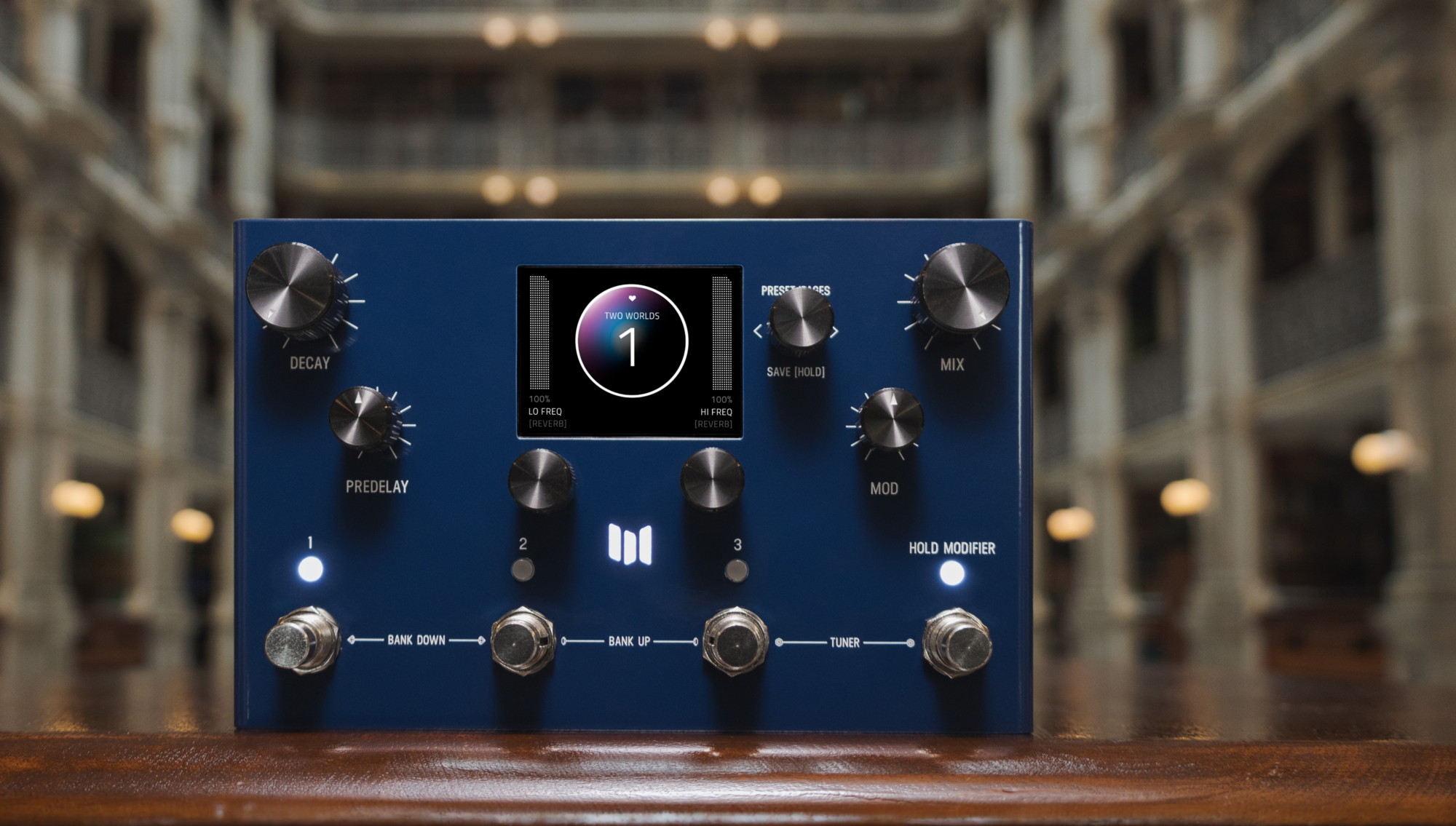

MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. All of our passion for pro audio has made it into both the algorithms and hardware performance of this pedal.


8 Custom Meris Reverbs

MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI/architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.

Angelo Mazzocco

DSP Engineer/VP

It’s no secret that rack reverbs are a passion of mine. I designed the reverb structures of MercuryX to build upon and expand the world of algorithmic reverbs made famous in those vintage racks. Matched up with MercuryX’s effortless modulation, they combine to form an atmospheric dream world.

Sound Clips

Los Angeles 2019
Big Sur River
Synth Cathedra
K (by MAVS)
Tape Symphony
Phaedra (by MAVS)
Into Dust
Eclipse + Freeze
Poles (by MAVS)
Reel2Reel (by MAVS)
Gated Reverse
Grail Chorus
Vibro Swell
Bass Sequence

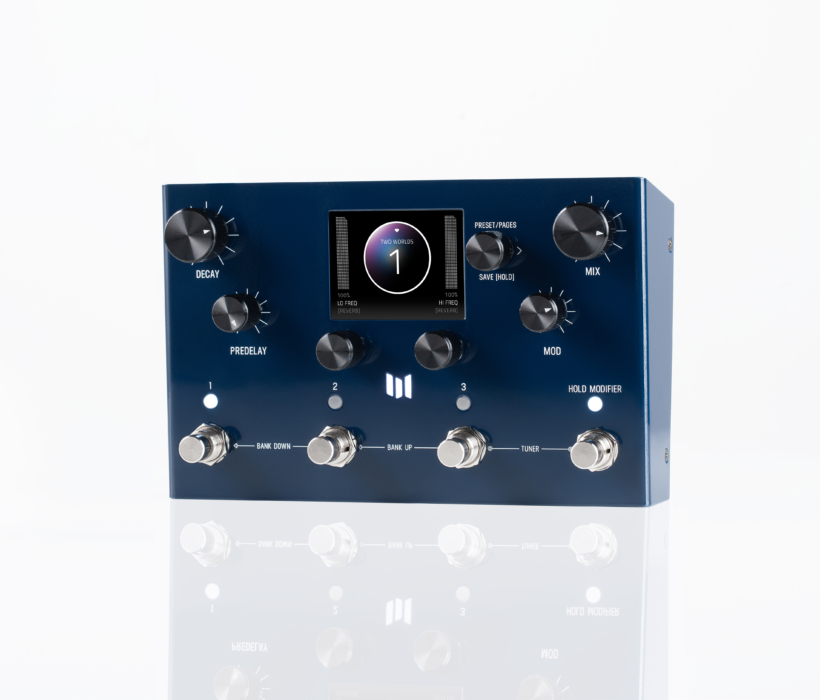

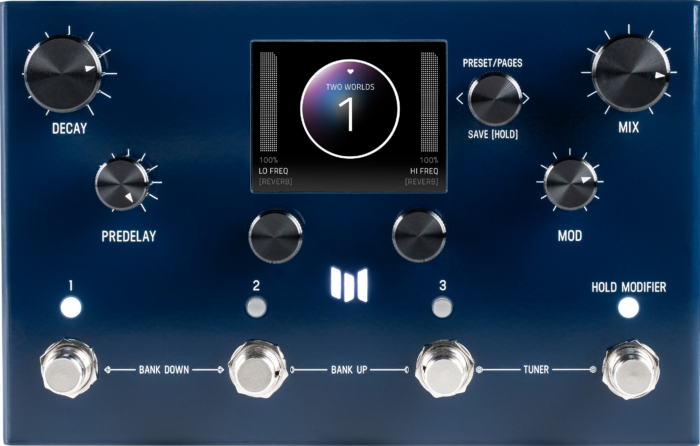

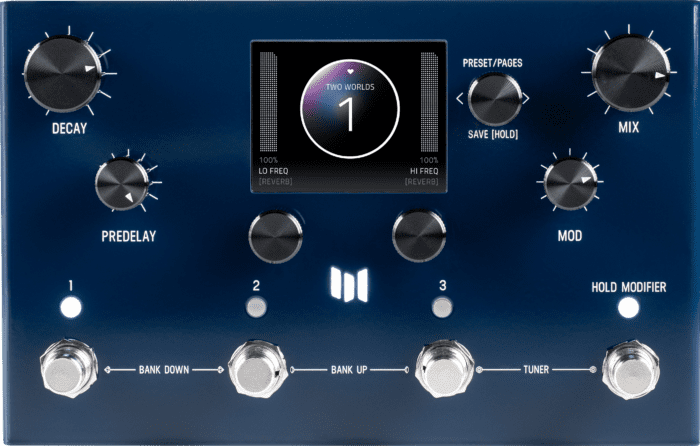

The Controls

Explore MercuryX

Click the (+) signs to learn more


Sets the amount of time the reverb tails lasts


Sets the amount of time before reverberation begins


Adjusts the balance between Dry (unprocessed) and Wet (effect applied) signals


Sets the modulation depth for the predelay of the selected reverb type


Turn C1 knob to adjust favorite parameter above (for Preset Page).
Use C1 knob to select in Edit Pages.


Turn C2 knob to adjust favorite parameter above (for Preset Page).
Use C2 knob to edit values in Edit Pages.


Turn C3 knob to change presets or push to enter edit mode. Turn to scroll thru Edit Pages in edit mode.  Hold C3 to save.

LED Button 1

Push LED button 1 to activate or bypass preset.  This button mimics Foot Switch 1 for desktop users.

LED Button 2

Push LED button 2 to activate or bypass preset.  This button mimics Foot Switch 2 for desktop users.

LED Button 3

Push LED button 3 to activate or bypass preset.  This button mimics Foot Switch 3 for desktop users.

Hold Modifier

An envelope generator that can be set to Momentary, Latching or Tap Tempo action per preset. The LED switch will light up to indicate when the modifier is active.

Foot Switch 1

Engages or bypasses preset.

Foot Switch 2

Engages or bypasses preset.

Foot Switch 3

Engages or bypasses preset.

Hold Modifier Switch

An envelope generator that can be set to Momentary, Latching or Tap Tempo action per preset. The LED switch (above) will light up to indicate when the modifier is active.

MercuryX Firmware Update v1.1.1

Please fill out our form to receive your free Firmware Update

We use MailChimp as our email newsletter automation platform. By clicking below to submit this form, you acknowledge that the information you provide will be transferred to MailChimp for processing in accordance with their Privacy Policy and Terms

  • Modular Reverb System architecture
  • 8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity
  • Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location
  • Advanced ARM Processor
  • Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing
  • Intuitive Color Screen based User Interface
  • Expressive Hold Modifier Switch for on the fly control
  • 99 Preset Locations in 33 Banks
  • Favorite Preset Bank for instant access to your 3 favorite presets
  • Instant Access Tuner with configurable Reference and Output mode
  • Deep Modifier Section lets you route control signals to processing parameters
  • New Independent Stereo Freeze alongside reverb
  • Gate Envelope Controls for every reverb type
  • All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more
  • Selectable Note Divisions for each side of the stereo Predelay
  • Digitally controlled Analog mix bus
  • Stereo input and output with separate jacks for each
  • Switchable input/output headroom level for Instrument or Synthesizer / Line levels
  • MIDI In and Out over standard MIDI Din Jacks
  • Assignable Expression Pedal control for multiple parameters simultaneously
  • Dedicated Expression Pedal Jack
  • MIDI implementation for Continuous Control Parameters
  • MIDI Preset Send and Receive
  • MIDI beat clock synchronization
  • Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
  • Premium Analog Devices JFET input section
  • Dimmable screen and logo light
  • Color – Deep blue glossy coat
  • Designed and built in California, U.S.A.
  • Conversion 24 bit A/D and D/A
  • DSP 32 bit floating point
  • Sample Rate 48000 Hz
  • Input Impedance 1 Meg Ohm
  • SNR 115 dB Typical
  • Frequency Response 20Hz-20kHz
  • Max Input Level +9 dBu (instrument level setting)
    +12.5 dBu (line/synth level setting)
  • Power 9V DC center-negative, 300mA, 2.1mm jack
  • Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
  • Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
  • Weight 24 ounces


Download Manual

Patchstorage for MercuryX


Ultimate Creative Transcendence

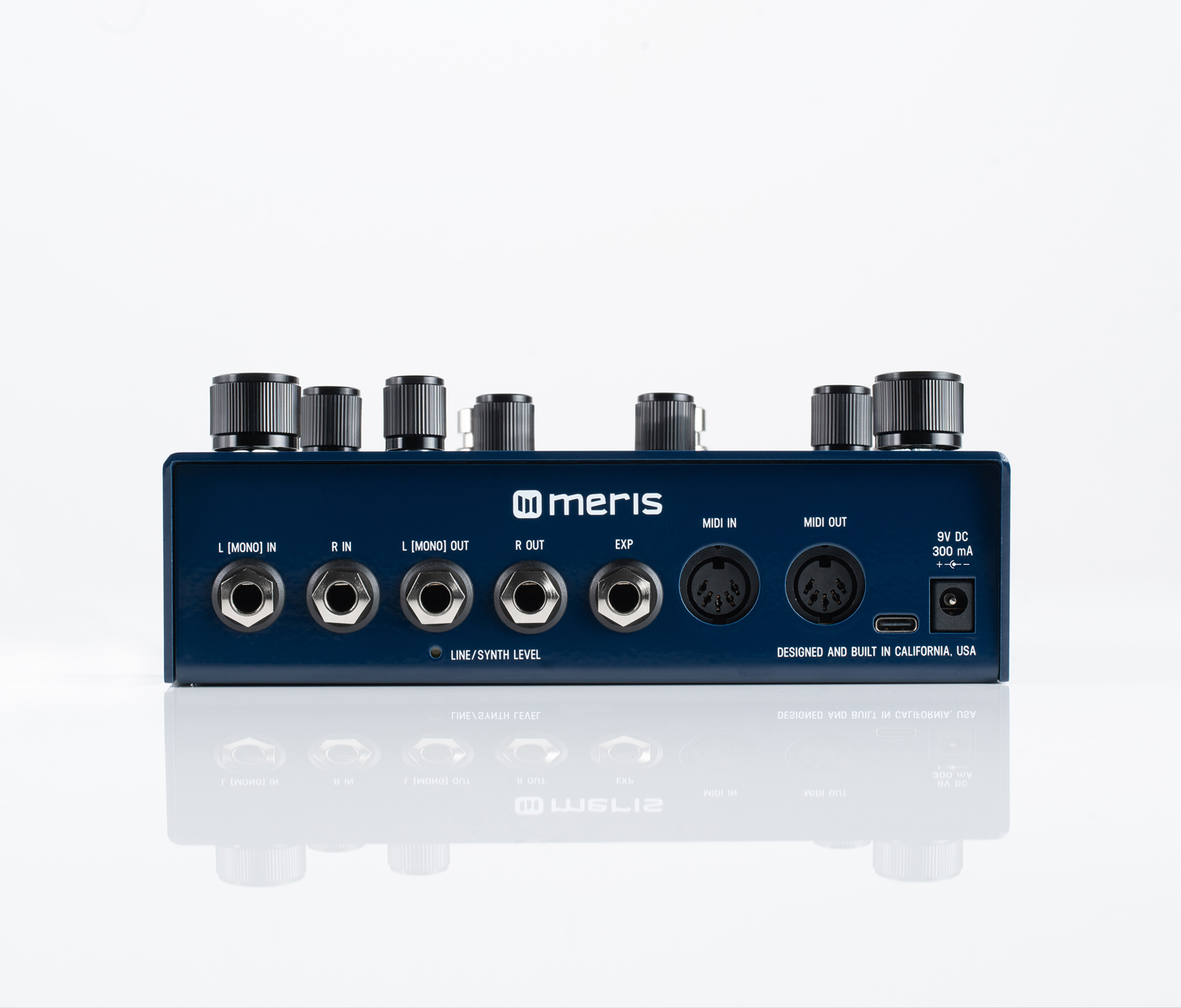

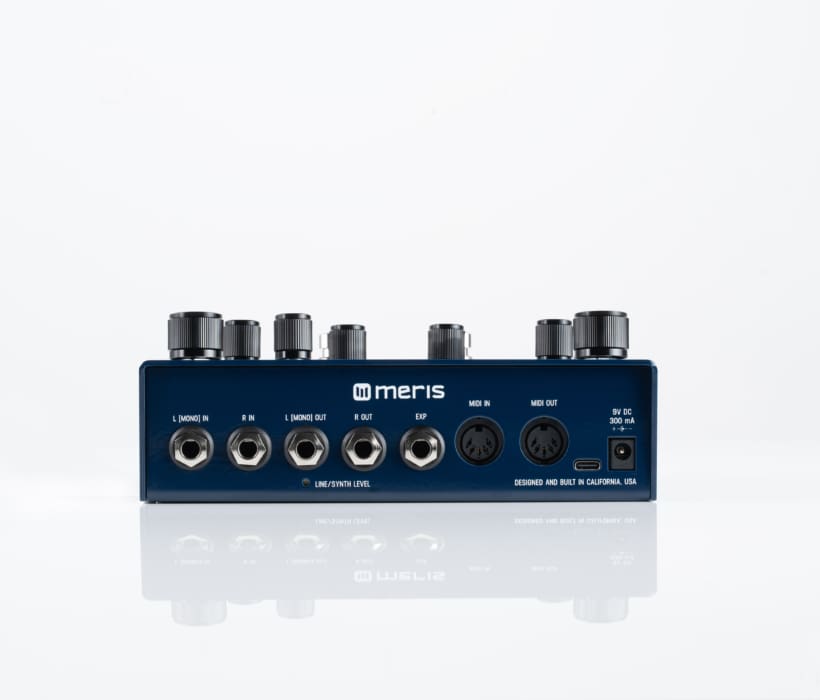

– 5 Pin DIN MIDI I/O Jacks
– Line/Synth Level
– Expression Pedal Jack
– USB-C (for firmware updates only)
– True Stereo Processing
– 9VDC center-negative power (at least 300mA)

WATCH THE ARRIVAL MercuryX Reveal Video


"A DEVINE AMBIENT DREAM." Watch/Listen The PedalZone Demo


WINNER of Future Music GEAR OF THE YEAR 2023 AWARD for Best Guitar Pedal.

We thought the Meris LVX was amazing in 2022, but Meris didn’t rest on their laurels and debuted the ultimate reverb pedal for guitarists, synthesists, sound designers and anyone else who wants their reverb effects on steroids. This is the first time a manufacturer has won two years in a row in the same category.


Future Music Magazine
Full Review

Just a phenomenal company that continues to hit one home run after another.

Nothing even comes close to the Meris Mercury X in terms of build quality, sound quality and depth. Nothing. If you’re looking for a special reverb pedal that can do practically everything you could ask of it, there’s nothing that compares to the Meris Mercury X. Highest Recommendation.


Future Music Magazine
Full Review

A powerful new reverb covers almost every imaginable incarnation of the effect.

Incredible reverb tones. Limitless tweakability. Smart interface helps conquer complexity.


Premier Guitar
Full Review

Meris proved their pedigree as both pedal and pro audio equipment masters

What I particularly enjoyed about Mercury X is the ability to build a breathtaking and otherworldly reverb patch in seemingly record time, and what would normally require a handful of additional pedals or plugins (with some written automation no less) is easily handled with Mercury X.


Full Review

It doesn’t make sense to look at anything other than MercuryX. Basically everything you could ever want out of a reverb unit is in this box.

The pedal is very musical and I found it easy to get sounds that enhanced what I was putting in rather than overwhelming or obfuscating them into oblivion. Meris has done a great job creating a very clear and intuitive system.

Sam Chittenden

Waveform Magazine
Full Review

I can honestly say that I’ve never heard special reverb effects as inspiring as these from any other pedal, regardless of cost.

Meris will tick all your boxes and then some.

Paul White

Sound on Sound Magazine
Full Review

I can’t even try to pretend that the MercuryX doesn’t live up to the hype.

Few effects pedals in recent memory have created more buzz than the Mercury X from the audio wizards at Meris, which has built its reputation making high-end guitar pedals.

Terrence O'Brien

Wired Magazine
Full Review

The MercuryX is a pedal about innovation, and pushing the boundaries of what you can do with a reverb unit.

…it’s unassumingly immersive and profoundly deep in a way that I haven’t found with any other reverb pedal.

Jason Mays
Full Review
