Hedra

HARMONIES IN STEP

3-Voice Studio Pitch Shifter w/ Hard Tuning

A Stranger In Our World

Her Light Will Change Us

“We are the music makers, And we are the dreamers of dreams…” – Arthur O’Shaughnessy (1873)

Angelo Mazzocco

DSP Engineer/VP

Adding the Hedra to my home studio’s 500 series rack was the realization of a long awaited dream. The instant access to micro tuning, pitched delays, and rhythmic harmonies direct from my channel strip has made adding color while tracking effortless.

INNOCENCE IN SPIRIT

Powerful in Execution

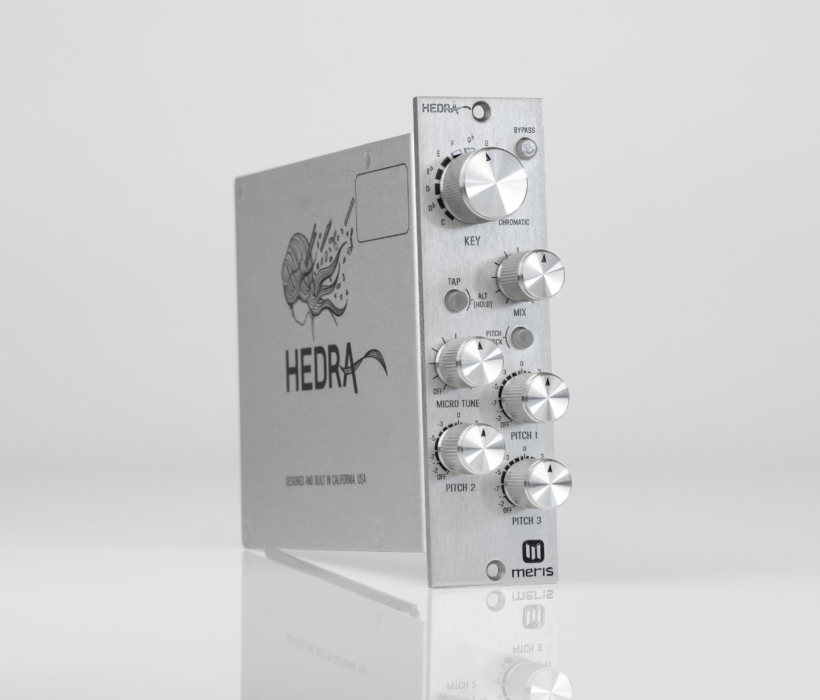

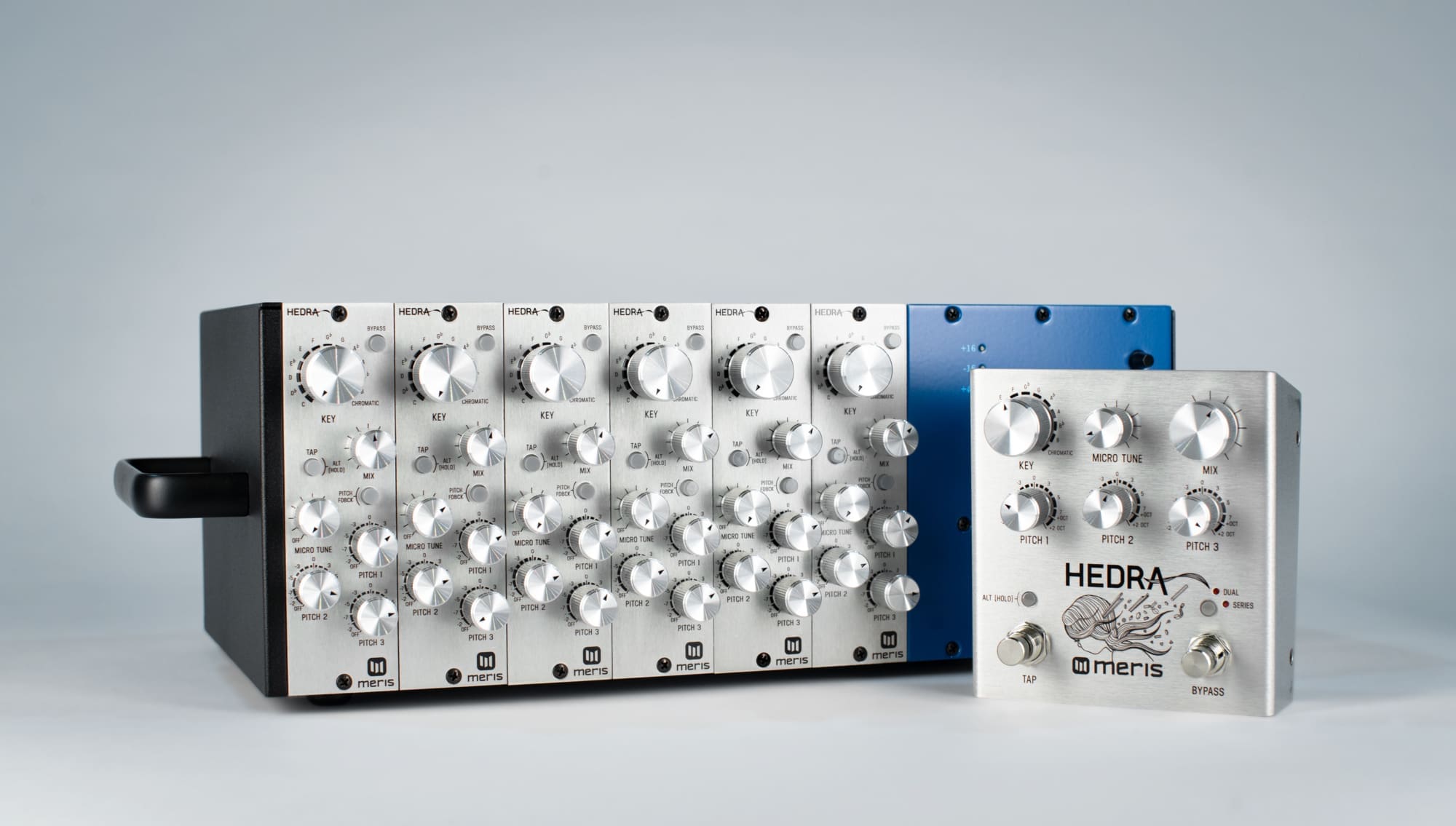

Put Hedra 500 into your studio rack and re-voice your melody palette in real time. 3 voices, in rhythm, combine with your original voice to create angelic harmonies. Each voice can be delayed and fed back for classic studio fattening, detuning, or extreme warping. Explore pitch locked harmony, either smooth or hard stepped and use your voice as an instrument. Add sonic unease and texture by micro tuning each voice or with our original glide mode to slide between pitches.

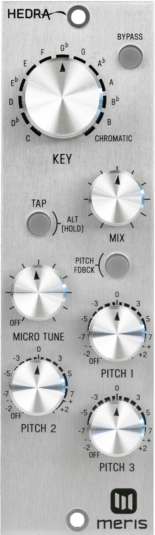

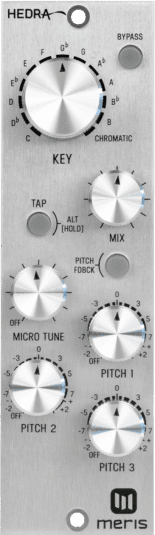

THE CONTROLS

Explore Hedra

Click the (+) signs to learn more

Key

Selects key for diatonic harmonies. Set to max for chromatic shifting Alt Function: Scale Type Select (from Min to Max): Major, Minor, Melodic Minor, Harmonic Minor, Double Harmonic, Lydian Pentatonic, Minor Pentatonic

Bypass

Processes signal when lit, passes dry signal entirely in analog when unlit
Alt Function: Swell Enable an automatic volume swell based on the input

Tap

Sets the main tempo/delay time.
Total available time = 520 msec.
HOLD to access Alt Function:
Alt knob functions are available while this button is being held

Mix

Adjusts the balance between Dry and Wet signals
Alt Function: Delay Feedback Controls delay feedback

Micro Tune

Slightly detunes all three pitch shifted voices
Alt Function: Pitch Correction and Glide
When the knob is between Min and Mid select between: No Correction, Loose Correction, Strict Correction. When knob is between Mid and Max selects amount of glide

Pitch Feedback

When button is lit, Pitch shifters are in the feedback loop of the delay
Alt Function: Half Speed Enables the delay to run at half speed

Pitch 2

Sets interval for the second pitch shifted voice
Alt Function: Time Division 2 Sets a fraction of the
main tempo for second pitch shifted voice

Pitch 1

Sets interval for the first pitch shifted voice
Alt Function: Time Division 1
Sets a fraction of the main tempo for the first
pitch shifted voice

Pitch 3

Sets interval for the third
pitch shifted voice
Alt Function: Time Division 3 Sets a fraction of the main tempo for third pitch shifted voice

Features
Specs

3-Voice Rhythmic Pitch Shifter

Selectable Pitch Correction Types to Re-Voice your Melodies in RealTime
Hard Stepped Pitch Correction available
Individual Controls for Pitch and Time Offset for each Voice (3 Voices Total)
Micro Tune control creates gentle chorus-like detuning, classic studio fattening, and extreme warping
Chromatic or Key Driven Harmony with Selectable Scale Types
520 mS tap tempo synced delay with selectable pitch feedback
Our Original Glide Mode slides between pitches at the speed you choose
Choice to sweep through Intervals smoothly or hard step for dramatic pitch effects
Switchable Half Speed and Auto Swell for advanced textures
Digitally controlled Analog mix control
Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
Balanced I/O, extremely low noise floor and high headroom for a pristine studio signal path
Color – raw brushed aluminum with clear coat
Designed and built in Los Angeles, California U.S.A.

Premium quality 24 bit A/D and D/A
32 Bit floating point DSP hardware
-116 dB Signal to Noise Ratio (typical)
Premium low noise Analog signal path throughout
Burr-Brown precision balanced input and output drivers
Stereo and Surround Linkable
100% Analog bypass

Manual

Download Manual

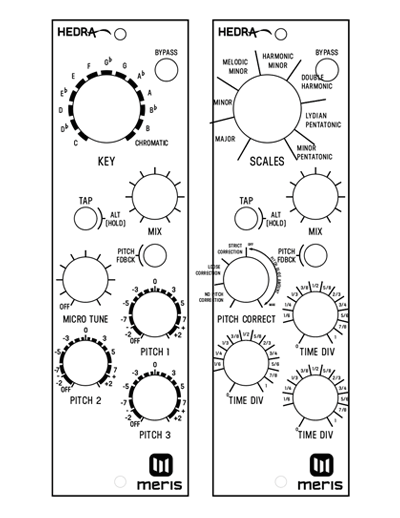

Reference Sheet

Download Ref Sheet
