Polymoon

MATHEMATICAL DREAM-STATE

Super-Modulated Delay inspired by cascaded rack gear.

From the minds of Meris

Communicate with your Dream State.

The Polymoon is everything we wanted in a delay. “Before he goes into the water, a diver cannot know what he will bring back.” – Max Ernst.

Angelo Mazzocco

DSP Engineer/VP

I’ve always been mesmerized by how giants like Holdsworth and Zappa would push rack delays to their limits. I designed the Polymoon’s algorithms as a tribute to those sounds while offering an even wider palette of dynamic echoes

Unlock your dream state

Brain Tides

Tidal soundscapes and super-modulated repeat trails will lead to new inspiration with every note you play. Guitar, synthesizer or any instrument will take on new shapes and forms with the Polymoon’s massive algorithmic flow.

Sound Clips

Expression Pedal Advanced Modulation

Multiply 3 with Sync Phase

Stereo Dynamic Doubling

Pitch Delay with Half Speed

Skipping Phaser Delay

Dimension Reflections

Pitch Delay

Multiply 3 Tap Tempo

Multi-Voice Chorus

Subterranean Flange Echo

Time Bending Fuzz

Dark Delay Modulation

Trapped Echoes

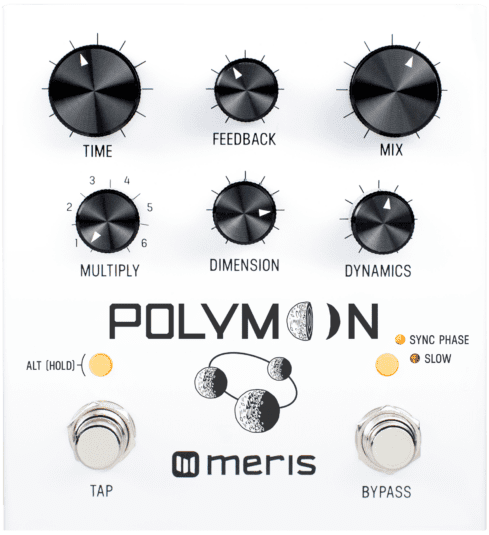

The Controls

Explore Polymoon

Click the (+) signs to learn more

Time

Sets the time for the delay and the synchronized phaser
Alt Function: Early Modulation
Triangle waveform modulation of the early delay taps. Ranges from gentle modulation, to FM, to pitch effects.

Feedback

Sets the feedback amount
Alt Function: Feedback Filter
Controls filter in the feedback path. Set to noon for no filtering, set towards minimum for a darker filter, set towards maximum for a brighter filter.

Mix

Adjusts the balance between Dry and Wet signals
Alt Function: Delay Level
Sets the gain of the Wet signal. Ranges from 0dB to -12dB. For auto-scaling, set to min.

Multiply

Sets the number of delay taps added to the output
Alt Function: Late Modulation
Triangle waveform modulation of the later delay taps. Ranges from gentle modulation, to FM, to pitch effects.

Dimension

Sets the dimension amount. Dimension smears and sustains the delay tap reflections
Alt Function: Dynamic Flanger Mode
Set to minimum for Envelope Down, set to noon for Envelope Up, and set to maximum for LFO

Dynamics

Sets the intensity/depth of the Dynamic Flanger. Flanger is off at minimum
Alt Function: Dynamic Flanger Speed
Sets the envelope attack time or LFO speed based on the Dynamic Flanger Mode

Hold to access Alt Functions

Alt Functions are only accessible when this button is held

Press to Select Phaser

Slow: Stereo Barberpole phaser with fixed speed of 0.1 Hz
Sync: Stereo Barberpole phaser with speed linked to a quarter note of the delay time
Slow + Sync: Stereo Barberpole phaser with speed linked to a whole note of the delay time

Tap

Sets the time for the delay and the synchronized phaser
Alt Function: Dotted Eighth Note
Changes current tempo from 1/4 notes to dotted 1/8 notes
Hold Tap: to engage Half Speed Delay

Bypass

Disables processing and passes the input through to the output
Alt Function: Dynamic Flanger Feedback
Adds negative feedback to the Dynamic Flanger

Features
Specs

Super-Modulated multiple tap delay

1200mS real time selectable multiple-tap delay line
Massive multi LFO modulation controls
6 custom tuned LFOs with adjustable waveforms for subtle to aggressive pitch shifting effects
Adjustable Tilt EQ filter in delay feedback
Tempo syncable stereo Barberpole Phaser
Multimode stereo Dynamic Flanger w/ feedback
Unique feedback topology
Dimension control for smearing reflections
Selectable quarter or dotted eighth note Tap Tempo
Digitally controlled Analog mix control

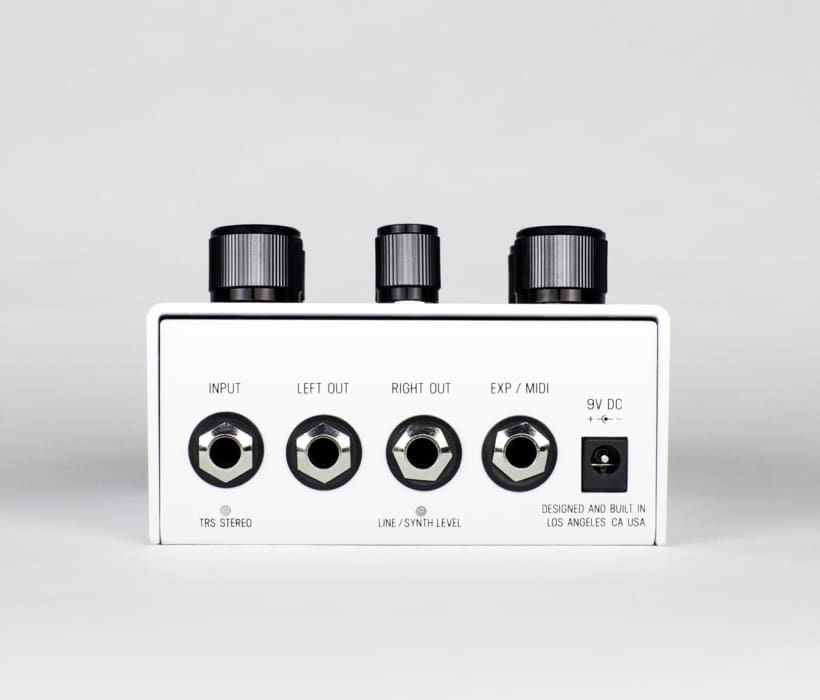

Stereo input and output
Switchable input output headroom level for Guitar, Synthesizer or Line levels
Expression pedal control over all parameters simultaneously
Presets available via external 4-Preset switch or MIDI
MIDI in/out over TRS via the EXP jack
External Tap Tempo over TRS
MIDI beat clock synchronization
Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
Premium Analog Devices JFET input section
Color – white powder coat with fine iridescent flake
Designed and built in Los Angeles, California U.S.A.

Premium quality 24 bit A/D and D/A
32 Bit floating point DSP hardware
Premium low noise Analog signal path throughout
Digitally controlled Analog Dry path for wet/dry mix
Analog Devices JFET input circuitry
Selectable True Bypass (Relay) or Analog Buffered Bypass
150 mA total power consumption
Durable white powder coat with fine iridescent flake
Current draw – <150 mA
Dimensions – 4.25″ wide, 4.5″ long, 2″ tall

Manual

Download Manual

Reviews

Nicholas Simonsen

Mixdown Magazine

Full Review

Meris continues to hit it out of the ballpark with their effects pedals. The Polymoon is a welcome addition to a saturated market and provides a unique and fun experience for all of you delay nerds.

Recommended for dreamy delay nerds. In a market filled to the brim with delay and modulation pedals, the Polymoon really shines through with something quite different. It does everything from the simplest of delays through to super modulated and pitch shifting soundscapes with ease. The 1200ms of delay gives you a tonne of sonic real estate to play with.The pedal has controls for time, feedback, mix, multiply, dimension and dynamics, as well as a tap tempo switch alongside the bypass switch. Easy to tweak to the desired sound without jumping through a tonne of hoops. I’ve said it before, but Meris make some of the highest quality pedals on the market that also look stunning. The white coated casing is tasteful and built like a bank vault.
